Your vision.
Clearly drawn.

Measured sketches into useful, considered drawings. Floor plans, exterior elevations and simple model views, with a defined scope and a clear fee.

Explore the packages

Hawksnest main floor pen to plan

About the background

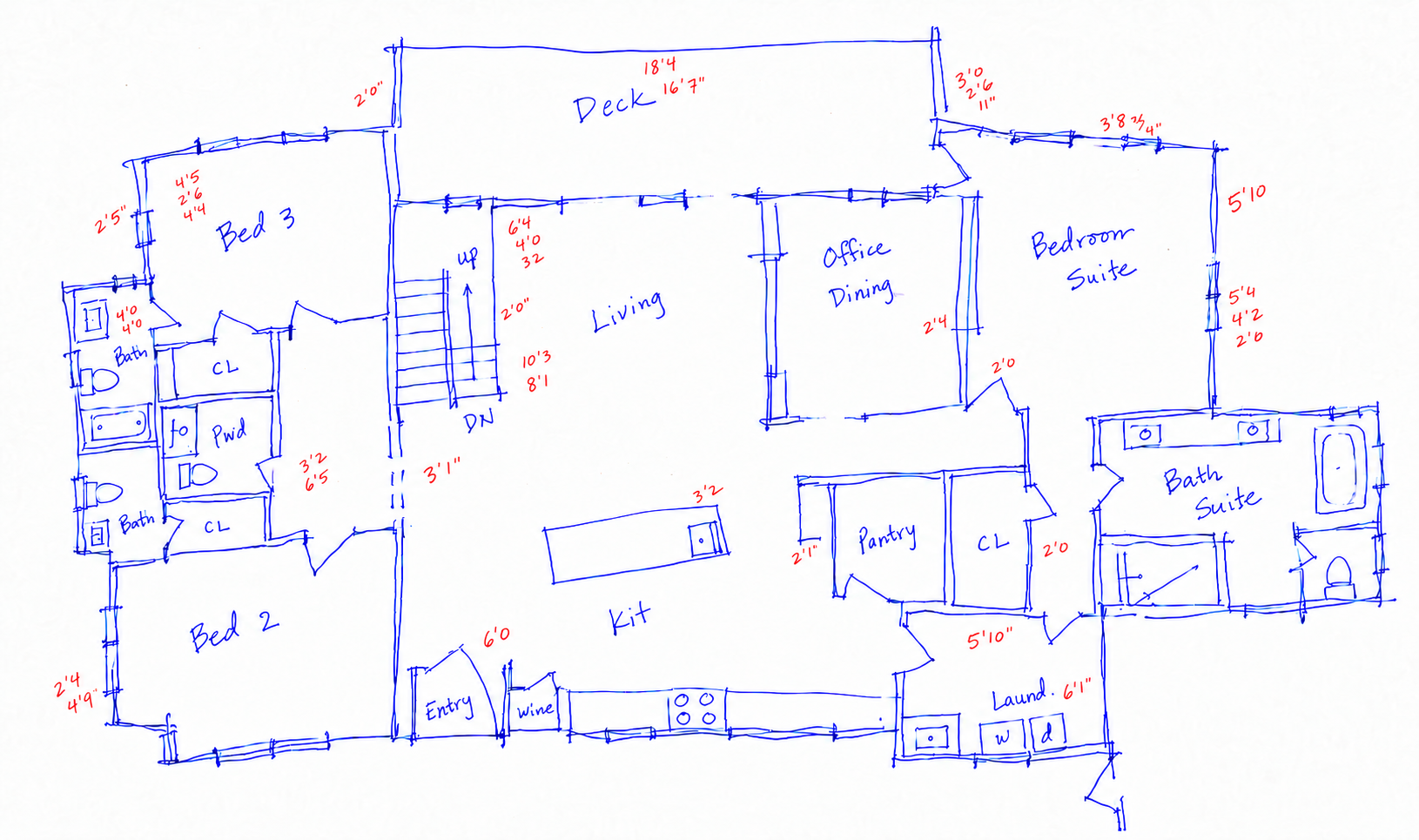

Based on Chief Architect’s Hawksnest sample floor plan, main-floor living spaces. The blue-and-red pen image is an illustrative interpretation, not an original measured sketch. Its loose measurements are illustrative. This is a visual study, not a Westernmost-built project or a technical document.

View pen interpretation View source plan

Drawing packages

Pricing & Scope.

For existing residential buildings, drawn from adequate client-supplied dimensions, heights and exterior references.

Floor plansA clear record of the spaces you have.$0.25/sq. ft.$350 minimum Plans + elevationsFloor plans, four exterior elevations and one simple model view.$0.50/sq. ft.$1,000 minimum

An initial estimate

Total area to be drawn

sq. ft.

Add the enclosed area across all levels. Count it once, not once per drawing.

Floor plans

$500CAD

A guide, not a binding quote. Final scope, fee and any applicable tax confirmed in writing.

Request a fixed quote

In both packagesChecked PDFs. One consolidated, in-scope revision round. Drafting error corrections included.

Simple payment milestones50% to begin. 50% after review, before final files.

Scope, supplied information & Additional Work

Standard residential work up to three levels and 5,000 sq. ft. Complex buildings are custom-quoted. Existing-condition drawings reflect the information supplied; site measurements and verification are not included.

Permit packages, engineering, new design, extra details and additional revisions are separately scoped. Missing dimensions or references are identified before the scope is confirmed.
